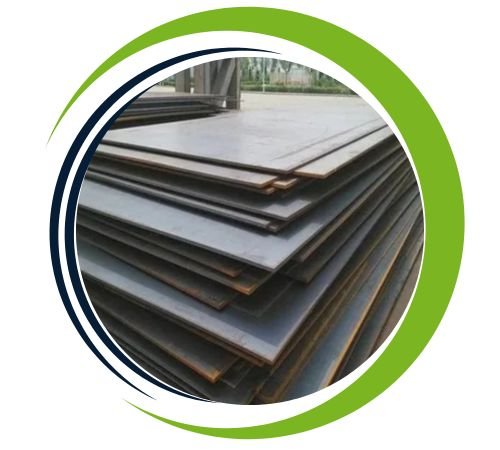

Victor Sheets and Plates stands out as a top-notch manufacturer and supplier located in Abuja, Nigeria. They specialize in high-quality SA516 Grade 60 Boiler Sheets and Plates, crafted to meet the toughest industrial standards. These plates are a go-to choice for pressure vessels, boilers, and heat exchangers, thanks to their remarkable strength, weldability, and notch toughness. Produced with cutting-edge technology and rigorously tested for quality, SA516 Grade 60 guarantees outstanding performance in both low and moderate temperature applications. Victor Sheets and Plates delivers reliable, durable, and precisely engineered boiler plates that are perfect for demanding tasks in the petrochemical, power generation, and refining sectors.
SA516 Grade 60 features a well-balanced mix of carbon (0.18–0.22%), manganese (0.55–1.20%), phosphorus (≤0.025%), sulfur (≤0.025%), and silicon (0.13–0.45%), providing excellent strength and impact resistance. It boasts a tensile strength ranging from 415 to 580 MPa and a yield strength of 260 MPa, with a minimum elongation of 21%. The fine-grain structure of the steel ensures good weldability, formability, and resistance to brittle fracture, even in high-pressure and high-temperature situations, making it an ideal choice for fabricating boilers and pressure vessels.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Grade 60 boiler sheet and plate offer excellent strength and durability, making them ideal for pressure vessel and boiler applications. Known for their resistance to cracking, they are highly effective in high-temperature and high-pressure environments. The steel’s weldability and ease of fabrication further enhance its versatility. Its ability to withstand moderate to high stress levels without compromising performance makes it suitable for power generation and chemical industries. SA516 Grade 60 also offers good toughness, making it reliable for long-term use in demanding applications.
SA516 Grade 60 Boiler Sheets and Plates are mainly found in boilers, heat exchangers, pressure vessels, storage tanks, and reactors that operate under high pressure and temperature. Thanks to their impressive mechanical strength and resistance to corrosion, they’re perfect for use in petrochemical plants, oil refineries, power generation units, and gas processing industries. You’ll also see them in industrial steam boilers, chemical process vessels, and thermal power equipment. With their excellent weldability and durability, SA516 Grade 60 plates are the go-to choice for fabricating components that need to endure thermal stress and tough working conditions over a long service life.
