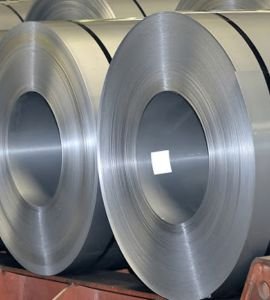

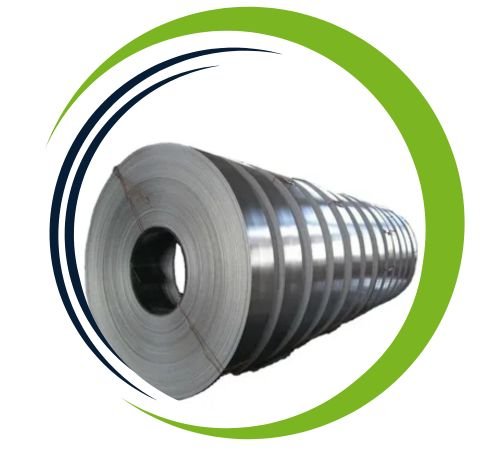

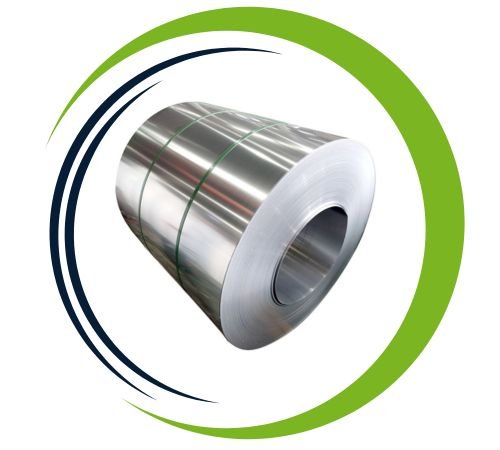

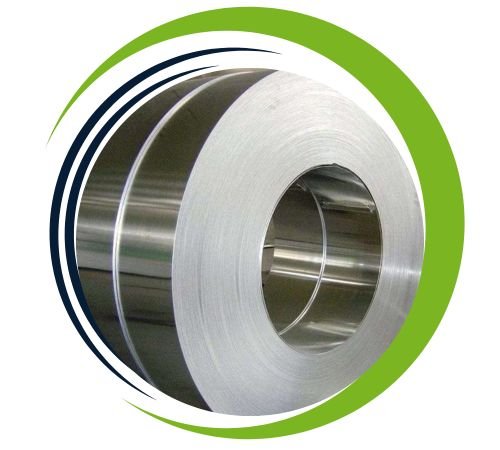

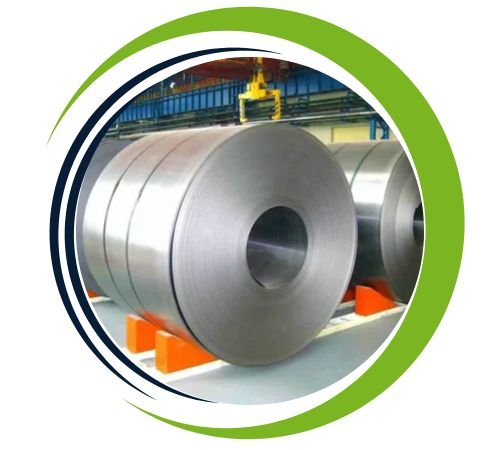

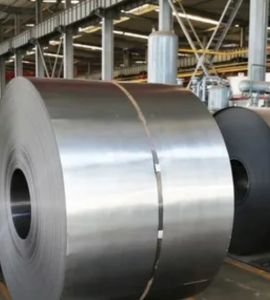

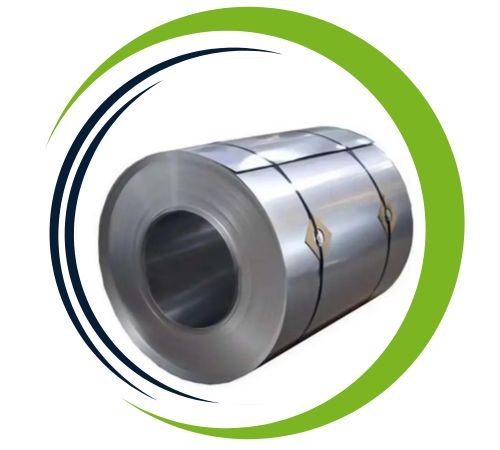

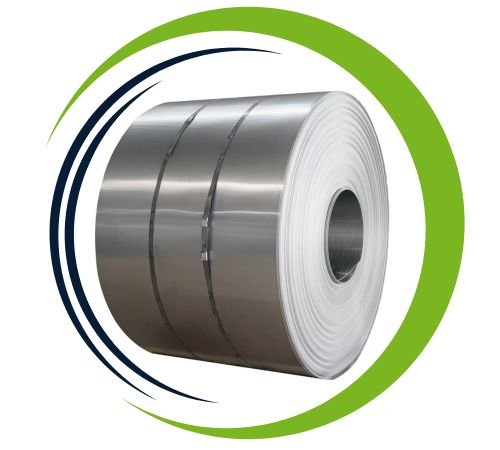

Victor Sheets and Plates is a well-respected manufacturer and supplier of Titanium Grade 5 Coils and Slitting Coils, proudly based in Abuja, Nigeria. The company is dedicated to delivering top-notch titanium materials that adhere to international standards for strength, precision, and performance. Titanium Grade 5, also known as Ti-6Al-4V, is the go-to titanium alloy, celebrated for its fantastic mix of strength, lightweight properties, and resistance to corrosion. Victor Sheets and Plates provides Titanium Grade 5 Coils that find their way into various industries, including aerospace, marine, chemical, and industrial sectors, ensuring they stand up to tough conditions while maintaining efficiency and durability.
When it comes to composition and mechanical properties, Titanium Grade 5 Coils/Slitting Coils are made up of roughly 90% titanium, 6% aluminum, and 4% vanadium, creating a remarkable balance of strength and thermal stability. This alloy boasts a tensile strength of about 950 MPa and a yield strength of around 880 MPa, all while offering good fatigue resistance and toughness. With a density of 4.43 g/cm³ and a melting point close to 1660°C, Titanium Grade 5 shines in high-stress and high-temperature environments. Its impressive corrosion resistance, high strength-to-weight ratio, and excellent formability make it a go-to choice for critical engineering applications.
| Standards | ASTM B265 / ASME SB265 |
| Thickness | 0.2mm – 5.0mm |
| Width | 3.2mm – 1500mm & bove |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Hardness | Annealed – pickled (soft), Soft, Hard, Half Hard, Quarter Hard, Spring Hard , 1/4 hard, Yi hard,3/4 hard , full hard , extra hard |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | Cold rolled stainless steel strips annealed & pickled 2 B Cold rolled stainless steel strips annealed & skin passed 2R Work harden for specific hardness BA/BE/ Matt Finish Cold rolled stainless steel strips |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | R56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| Thickness Tolerance +/- mm | ||||
| Thickness | Width | |||
| 320≤W＜600 | W＜320 | |||
| T1 | T2 | T3 | T4 | |
| T＜0.05 mm | 0.004 | 0.003 | 0.003 | 0.002 |
| 0.05≤T＜0.07 | 0.005 | 0.004 | 0.004 | 0.003 |
| 0.07≤T＜0.08 | 0.006 | 0.005 | 0.005 | 0.003 |
| 0.08≤T＜0.10 | 0.007 | 0.005 | 0.005 | 0.003 |
| 0.10≤T＜0.13 | 0.009 | 0.007 | 0.006 | 0.004 |
| 0.13≤T＜0.15 | 0.010 | 0.008 | 0.007 | 0.004 |
| 0.15≤T＜0.20 | 0.011 | 0.009 | 0.008 | 0.004 |
| 0.20≤T＜0.25 | 0.013 | 0.010 | 0.008 | 0.005 |
| 0.25≤T＜0.30 | 0.015 | 0.011 | 0.009 | 0.005 |
| 0.30≤T＜0.35 | 0.016 | 0.012 | 0.010 | 0.005 |
| 0.35≤T＜0.40 | 0.018 | 0.012 | 0.010 | 0.005 |
| 0.40≤T＜0.50 | 0.020 | 0.015 | 0.012 | 0.005 |
| 0.50≤T＜0.60 | 0.022 | 0.018 | 0.013 | 0.005 |
| 0.60≤T＜0.70 | 0.024 | 0.020 | 0.015 | 0.005 |
| 0.70≤T＜0.80 | 0.026 | 0.022 | 0.017 | 0.005 |
| 0.80≤T＜0.90 | 0.028 | 0.024 | 0.018 | 0.006 |
| 0.90≤T＜1.00 | 0.032 | 0.027 | 0.020 | 0.008 |
| 1.00≤T＜1.20 | 0.035 | 0.030 | 0.022 | 0.008 |
| 1.20≤T＜1.40 | 0.040 | 0.035 | 0.025 | 0.010 |
| 1.40≤T＜1.60 | 0.045 | 0.040 | 0.030 | 0.020 |
Titanium Grade 5 coils and slitting coils offer many benefits, including high strength to weight ratio, excellent corrosion resistance and exceptional durability They withstand harsh conditions including temperatures up to 400 degrees Celsius self without loss of performance. Biocompatibility makes them ideal for medical applications, while their light weight increases fuel efficiency in the aerospace and automotive industries. These coils also exhibit excellent fatigue and separation resistance, providing long service life. Furthermore, they are versatile, easy to machine and reusable, providing durable and reliable solutions for complex applications across a variety of industries.
Yes, we offer custom sizes for Titanium Grade 5 Coil/Slitting Coil to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 5 Coils and Slitting Coils are widely utilized in industries that demand lightweight yet robust materials. In aerospace, they’re essential for turbine components, structural parts, and heat exchangers. The marine sector relies on them for shipbuilding, underwater equipment, and desalination systems, thanks to their ability to resist seawater corrosion. In the chemical industry, they’re perfect for heat exchangers, reactors, and piping systems. Plus, these coils are also found in medical devices, automotive components, and defense applications, where high mechanical strength, corrosion resistance, and precision are crucial for long-lasting performance.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
