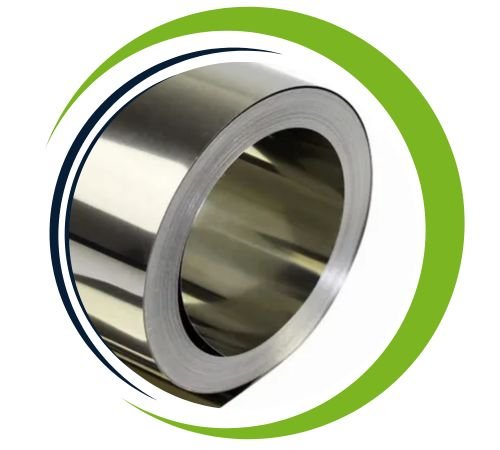

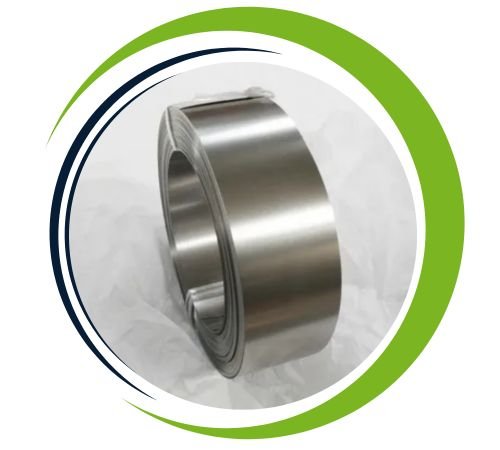

Victor Sheets and Plates is a leading manufacturer and supplier of Titanium Grade 5 Foil in Abuja, Nigeria, delivering precision-engineered foil solutions for high-performance and critical applications. Titanium Grade 5, also known as Ti-6Al-4V, is renowned for its exceptional balance of strength, corrosion resistance, and lightweight characteristics. Our Titanium Grade 5 Foil is carefully processed to ensure uniform thickness, excellent surface finish, and stable mechanical performance. It is widely used in aerospace, defense, medical implants, marine components, and advanced engineering industries, where reliability and durability under demanding conditions are essential.
Standards : ASTM B265 / ASME SB265
Width : 3.2mm – 1500mm
Form : Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7164 / 3.7165 | R56400 |
| Grade | C | Ti | O | Fe | Ai | V |
| Titanium Gr. 5 | 0.25 max | 90 min | 0.2 max | 0.25 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Grade 5 Foil is composed of 90% Titanium, 6% Aluminum, and 4% Vanadium, forming a strong alpha-beta alloy. This composition provides high tensile and yield strength, excellent fatigue resistance, and strong corrosion resistance even in harsh environments. Despite its strength, the material remains lightweight and exhibits good creep resistance at moderately elevated temperatures. It maintains structural integrity without significant deformation, offering reliable performance in both static and dynamic loading conditions. The foil can be formed, welded, and machined with proper methods, making it adaptable to advanced engineering requirements.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 5 Foil is widely used in aerospace engineering, including aircraft skins, turbine parts, and structural reinforcement, due to its strength-to-weight efficiency. In the medical field, it is used for surgical implants and biomedical devices thanks to its biocompatibility. The foil is also utilized in marine systems, chemical processing plants, desalination equipment, and high-performance automotive systems where resistance to corrosion and stress is necessary. Additionally, it is used in research laboratories, heat shielding, electronic device shielding, and precision instrumentation. Its combination of durability, stability, and lightweight nature makes it essential for modern high-tech applications.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Titanium Grade 5 Foils to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 5 Foils are widely used in industries requiring high strength, corrosion resistance, and lightweight materials. Common applications include aerospace components, such as turbine blades, fasteners, and airframe structures, due to their ability to withstand extreme conditions. In the medical field, Grade 5 foils are utilized for implants and prosthetics, thanks to their biocompatibility. They are also used in automotive, marine, and chemical processing industries for parts exposed to harsh environments. Additionally, the alloy is employed in the production of high-performance sporting equipment and electronics.
