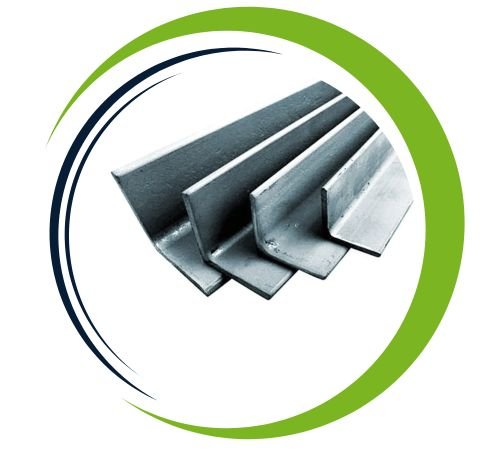

Victor Sheets and Plates, a reputable manufacturer and supplier located in Abuja, Nigeria, specializes in top-notch Stainless Steel 440C Angles, celebrated for their remarkable hardness, strength, and wear resistance. Crafted with cutting-edge techniques and premium materials, these angles are perfect for applications that require both durability and precision. With excellent corrosion resistance and outstanding mechanical properties, Stainless Steel 440C Angles are suitable for a variety of industrial and structural uses. Victor Sheets and Plates guarantees that every product adheres to international quality standards, catering to industries like aerospace, automotive, engineering, and tooling with reliable, high-performance stainless steel solutions.
Stainless Steel 440C Angles primarily consist of iron, along with chromium (16–18%), carbon (0.95–1.20%), and small amounts of manganese, molybdenum, and silicon. This high-carbon martensitic stainless steel achieves impressive hardness and wear resistance after heat treatment. It boasts a tensile strength of up to 760 MPa (in its annealed state) and can reach as high as 1900 MPa when hardened, while also offering good corrosion resistance in mild environments. Although it’s less ductile than austenitic grades, Stainless Steel 440C excels in toughness, polishability, and dimensional stability even under high-stress and high-temperature conditions.
| Dimensions | EN, ASME, AISI, BS, JIS, DIN, ASTM, |
|---|---|
| Stainless Steel 440C Round Bar size | Thickness: 2 to 100 milimeter |
| Tolerance | K11, H8, H12, K12, H13, H10, H9, K9, K10, H11, or as per need |
| Stainless Steel 440C Round Bar Form | Round, Rod, T-Bars, Channel Bars, Precision Ground Bars, Flat Bars, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Threaded, Hex (A/F), Rectangle, Half Round Bars, Profiles, Billet, Ingot, Forging, I/H Bars etc. |
| Flat bar size | Dia: 3-~800 milimeter |
| Width: 10 – 500 milimeter | |
| size of Stainless Steel 440C Angle bar | 3 milimeter * 20 milimeter* 20 milimeter~12 milimeter* 100 milimeter* 100 milimeter |
| Section bar | 3.0 – 12.0 milimeter thk |
| SS 440C Channel Bar sizes | 5 – 6 milimeter thk, 80 x 40 milimeter – 150 x 75 milimeter section |
| Hollow Bar sizes | 32 milimeter Outside Diameter x 16 milimeter Inside Diameter to 250 milimeter Outside Diameter x 200 milimeter Inside Diameter) |
| Size of Rectangles | 34 x 30 milimeter – 295 x 1066 milimeter |
| Stainless Steel 440C Billet Size | 1/2 – 495 milimeter Diameter |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Finish | Cold (bright) drawn, hot rolled, slit rolled edge, Polish, Bright, peeled, hot rolled annealed, Rough Turned, centreless ground, Centreless Ground, smooth turned, Grinding & Black |
| Technique | Stainless Steel Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Stainless Steel 440C Round Bar Condition | annealed, tempered, Hardened |
| Processing | cutting to 650 milimeter |
|
Stainless Steel 440C |
Max |
Min |
|---|---|---|
|
C |
1.20 |
0.95 |
|
Si |
1.00 |
– |
|
Mn |
1.00 |
– |
|
Ni |
1.00 |
– |
|
Cr |
18.00 |
16.00 |
|
Mo |
0.75 |
0.00 |
|
P |
0.04 |
– |
|
S |
0.03 |
0.15 |
|
Element |
Stainless Steel 440C |
|---|---|
|
Temp°C |
20 |
|
Tensile (UTS)N/mm² |
1965 |
|
0.2% YieldN/mm² |
1896 |
|
Elongation(50.8mm) %) |
2 |
|
HardnessHRc |
57 |
|
Reductionof Area |
10 |
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
|---|---|---|---|
|
Stainless Steel 440C |
1.4125 |
S44004 |
SUS 440C |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 440C angle offers several advantages including high hardness and excellent wear resistance, making it ideal for heavy load and abrasion applications especially in sensitive corrosive And corrosion environments high resistance, due to its high chromium content. The ability to retain energy at high temperatures makes it suitable for high temperature applications. The material is also very durable, making it last longer and less maintenance. Stainless steel 440C angle is commonly used in the manufacture of tool, machine parts and high performance valves. Its strength and durability make it highly reliable in harsh industrial environments.
Stainless Steel 440C Angles find extensive use in industries where high hardness, strength, and wear resistance are essential. They are perfect for crafting knife blades, valve components, bearings, and precision instruments. In the automotive and aerospace fields, these angles are utilized for mechanical parts that face friction and stress. Their excellent surface finish and corrosion resistance also make them ideal for decorative and structural applications. Furthermore, they are employed in surgical tools, industrial machinery, and molds, ensuring long-lasting performance across various demanding environments.
