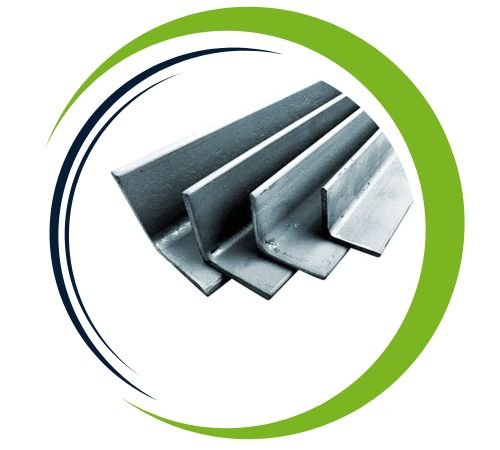

Victor Sheets and Plates, a reputable manufacturer and supplier located in Abuja, Nigeria, focuses on crafting high-quality Stainless Steel Angles that are celebrated for their strength, durability, and resistance to corrosion. These angles are produced using cutting-edge technology and precise engineering to align with international quality standards. Perfect for both structural and industrial uses, the Stainless Steel Angles from Victor Sheets and Plates guarantee outstanding performance in various indoor and outdoor settings. Their products are highly regarded for their excellent surface finish, precise dimensions, and long-lasting service life, making them a dependable choice for numerous construction and engineering projects.
Stainless Steel Angles mainly consist of iron, with essential alloying elements like chromium (16–20%), nickel (8–12%), and trace amounts of carbon, manganese, and silicon. Some grades may also include molybdenum to boost corrosion resistance. These angles showcase a tensile strength that ranges from 515 to 750 MPa and a yield strength between 205 and 550 MPa, depending on the specific grade. They are known for their remarkable ductility, toughness, and weldability, along with strong resistance to oxidation and scaling at elevated temperatures, ensuring dependable performance in challenging environments.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 201 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Temper | Tensile Strength | Yield Strength | Elongation | Rockwell | ||
|---|---|---|---|---|---|---|
| KSi | MPa | KSi | MPa | in 2 inches % | ||
| 1/2 Hard | 150 | -1034 | 110 | -758 | 10 | C-32 |
| 1/4 Hard | 125 | -862 | 75 | -517 | 20 | C-25 |
| 3/4 Hard | 175 | -1207 | 135 | -931 | 7 | C-37 |
| Annealed | 95 | -655 | 45 | -310 | 40 | B-90 max. |
| Full Hard | 185 | -1276 | 140 | -965 | 5 | C-41 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 201 | S20100 | 1.4372 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel angle have many advantages, making them popular in construction and manufacturing. They are very strong, corrosion resistant, and remain strong even in extreme temperatures. Stainless steel corners also make good aesthetic appeal due to their elegant design. Minimal maintenance is required, to ensure longevity. In addition, their versatility, ease of manufacture, and strength-to-weight ratio make them ideal for construction applications. Their resistance to harsh chemical and environmental conditions ensures reliability and efficiency in the automotive, marine and construction industries.
| Width (mm) | Thickness (mm) | Width (Inches) | Thickness (Inches) |
|---|---|---|---|
| 20 x 20 | 3 to 5 | 3/4″ | 1/8 to 1/4 |
| 25 x 25 | 3 to 5 | 1″ | 1/8 to 1/4 |
| 30 x 30 | 3 to 5 | 1.1/8 | 1/8 to 1/4 |
| 32 x 32 | 3 to 6 | 1.1/4 | 1/8 to 1/4 |
| 35 x 35 | 3 to 6 | 1.3/8 | 1/8 to 1/4 |
| 38 x 38 | 3 to 6 | 1.1/2 | 1/8 to 1/4 |
| 40 x 40 | 3 to 6 | 1.5/8 | 1/8 to 1/4 |
| 45 x 45 | 3 to 6 | 1.3/4 | 1/8 to 1/4 |
| 50 x 50 | 3 to 6 | 2″ | 1/8 to 1/4 |
| 60 x 60 | 5 to 6 | 2.3/8 | 3/16 to 1/4 |
| 65 x 65 | 5 to 6 | 2.1/2 | 3/16 to 1/4 |
| 70 x 70 | 5 to 6 | 2.3/4 | 3/16 to 1/4 |
| 75 x 75 | 5 to 6 | 3″ | 3/16 to 1/4 |
Stainless Steel Angles find extensive use across various industries, including construction, architecture, marine, and manufacturing. They play a crucial role as structural components in building frameworks, bridges, and support systems due to their impressive strength and resistance to corrosion. In sectors like food, pharmaceuticals, and chemicals, these angles are utilized for creating hygienic and durable equipment. They are also essential in shipbuilding, automotive parts, and heavy machinery. Furthermore, Stainless Steel Angles are employed in reinforcement, conveyor systems, and industrial setups where long-term stability and load-bearing capacity are vital.
