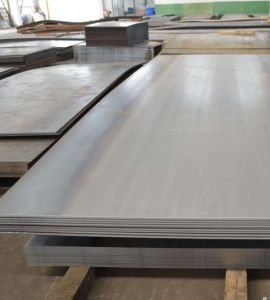

Victor Sheets and Plates, a well-respected manufacturer and supplier located in Abuja, Nigeria, specializes in top-notch Stainless Steel 301 Sheets and Plates. These products are celebrated for their impressive strength, remarkable corrosion resistance, and excellent formability. This type of chromium-nickel austenitic stainless steel is engineered to achieve greater hardness and tensile strength through cold working, making it perfect for both structural and decorative uses. Victor guarantees that each 301 sheet and plate adheres to international standards for durability, precision, and surface finish. These sheets and plates find extensive applications in the automotive, aerospace, construction, and industrial sectors, where strength and wear resistance are paramount.
Stainless Steel 301 is composed of about 16–18% chromium, 6–8% nickel, up to 0.15% carbon, along with trace amounts of manganese, silicon, and nitrogen. The alloy boasts a tensile strength that ranges from 515–1035 MPa, depending on how much cold work it has undergone, and a yield strength between 275–930 MPa, with elongation reaching up to 40%. It showcases excellent ductility, toughness, and corrosion resistance in mild environments. 301 stainless steel also offers superior fatigue strength and work-hardening capabilities, making it ideal for applications that demand both formability and mechanical performance under varying stress conditions.
| Grades | Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L , 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L |
| Thickness | 0.3mm – 100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Type of Material | STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |

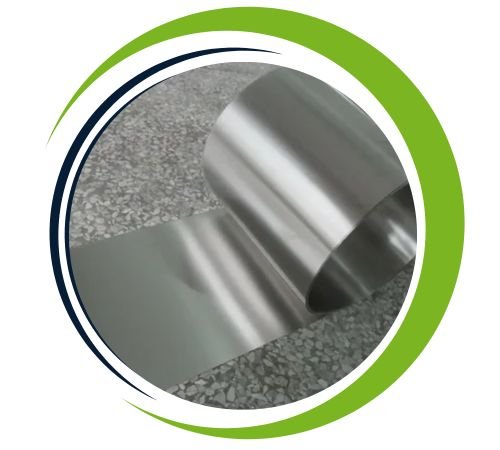

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Sheets & Plates, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
|
Element |
Percent by Weight |
|
Type 301 ANN |
|
|
Carbon |
0.150 maximum |
|
Manganese |
2.000 maximum |
|
Phosphorus |
0.045 maximum |
|
Sulfur |
0.030 maximum |
|
Silicon |
1.00 maximum |
|
Chromium |
16.00 – 18.00 |
|
Nickel |
6.000 – 8.000 |
|
Nitrogen |
0.10 maximum |
|
Properties |
Metric |
Imperial |
|---|---|---|
|
Tensile strength |
515 MPa |
74694 psi |
|
Yield strength |
275 MPa |
39900 psi |
|
Elastic modulus |
207 GPa |
30000 ksi |
|
Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation at break |
40% |
40% |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 301 | 1.4310 | S30100 | SUS 301 | – | – | – | – |
|
Physical Property |
Value |
||
|---|---|---|---|
|
Density |
0.2850 lb/in³ (7.88g/cm³) |
||
|
Melting Range |
2250-2950°F (1399-1421°C) |
||
|
Specific Gravity |
8.03 |
||
|
Modulus of Elasticity in Tension |
28•106 psi (193 GPa)* |
|
Temperature Range |
Mean Coefficient of Thermal Expansion |
||
|
°C |
°F |
cm/cm°C |
in/in/°F |
|
20-100 |
68-212 |
16.6·10-6 |
9.2·10-6 |
|
20-300 |
68-572 |
17.6·10-6 |
9.8·10-6 |
|
20-500 |
68-932 |
18.6·10-6 |
10.3·10-6 |
|
20-700 |
68-1292 |
19.5·10-6 |
10.8·10-6 |
|
20-871 |
68-1600 |
19.8·10-6 |
11.0·10-6 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 301 sheets and plates have many advantages, including exceptional corrosion resistance, making them ideal for harsh environments Their high strength and extremely durable work performance endure heavy mechanical stresses and remain stable. This makes them suitable for use in a variety of industries, including aviation, automotive, and construction. The excellent weldability and ease of fabrication of the alloy provide its versatility for various applications. Additionally, stainless steel 301 is highly resistant to oxidation and can maintain its strength at elevated temperatures, providing long-term and reliable service.
Stainless Steel 301 Sheets and Plates are incredibly popular in a variety of applications, including automotive trim, aircraft parts, conveyor belts, architectural panels, and industrial springs, all thanks to their impressive strength and formability. You’ll also find them in kitchen equipment, railway cars, structural supports, and roofing materials, where both looks and performance matter. In the transportation and construction sectors, 301 sheets are a go-to choice because of their durability against wear, oxidation, and deformation. Victor’s 301 Sheets and Plates offer an ideal mix of toughness, corrosion resistance, and versatility, making them a dependable option for high-stress and precision-engineered projects across different industries.
