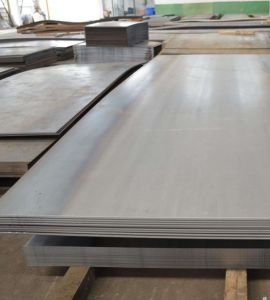

Victor Sheets and Plates, a top-notch manufacturer and supplier located in Abuja, Nigeria, specializes in high-quality Stainless Steel 347H Sheets and Plates that are built to perform exceptionally in high-temperature and corrosive settings. This high-carbon variant of 347 stainless steel is known for its improved creep resistance, strength, and oxidation stability when exposed to elevated temperatures. Victor guarantees that each sheet and plate adheres to international quality standards, ensuring precise dimensions, a smooth finish, and remarkable durability. Thanks to their excellent thermal stability and resistance to intergranular corrosion, Stainless Steel 347H Sheets and Plates find extensive use in chemical processing, petroleum refining, power generation, and heat exchanger applications.
Stainless Steel 347H is an austenitic chromium-nickel steel that’s stabilized with niobium (columbium) and features a higher carbon content (0.04–0.10%) compared to 347. It generally contains 17–19% chromium, 9–13% nickel, and small amounts of niobium for carbide stabilization. This alloy boasts a tensile strength ranging from 515–700 MPa, a yield strength of about 205 MPa, and an elongation of 40%. 347H is known for its excellent creep and stress rupture resistance, outstanding oxidation resistance up to 870°C (1600°F), and good weldability, making it perfect for high-pressure and high-temperature structural and mechanical applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 347H | 1.4961 | S34709 | SUS 347H | X12CrNiTi18-9 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 347H sheets and plates offer many benefits, making them ideal for high-temperature environments. High carbon content increases strength, while the presence of columbium improves intergranular corrosion resistance especially in welded structures Its excellent oxidation and corrosion resistance makes it suitable for petrochemical power generation and aerospace applications. Furthermore, 347H exhibits excellent weldability, making it easy to manufacture. The material also maintains structural integrity at high temperatures, ensuring durability and reliability in demanding applications. These features make the 347H the ideal choice for critical, high-performance applications.
Stainless Steel 347H Sheets and Plates are a go-to choice in industries that demand high-temperature strength along with resistance to corrosion and oxidation. You’ll often find them in applications like boilers, heat exchangers, pressure vessels, refineries, chemical processing equipment, and furnace components. They’re also utilized in sectors such as aerospace, petrochemical, and power generation for parts that face continuous heat and pressure. Thanks to their stability against carbide precipitation, 347H sheets and plates are perfect for high-stress and thermal cycling environments. Victor’s 347H stainless steel products are known for their long service life, impressive strength, and outstanding performance, making them a top pick for various industrial and engineering applications.
