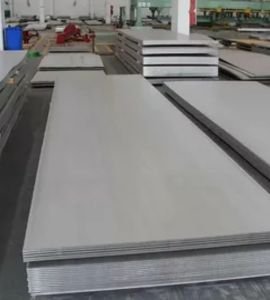

Victor Sheets and Plates is a well-respected manufacturer and supplier of Stainless Steel 304H Sheets and Plates based in Abuja, Nigeria. They specialize in top-quality stainless steel products that are perfect for high-temperature and high-strength applications. Stainless Steel 304H is essentially a high-carbon variant of 304, which means it offers improved mechanical strength along with excellent resistance to heat and oxidation. At Victor Sheets and Plates, they pride themselves on precision manufacturing, smooth surface finishes, and strict adherence to international quality standards. Their products serve a variety of industries, including petrochemical, power generation, refining, construction, and marine sectors, providing reliable and long-lasting stainless steel sheet and plate solutions.
The Stainless Steel 304H Sheets and Plates are made up of 18–20% chromium and 8–10.5% nickel, with a higher carbon content of 0.04–0.10%. This unique composition boosts their high-temperature strength and creep resistance. Additionally, the alloy contains manganese, silicon, and phosphorus, which contribute to its toughness and ease of fabrication. SS 304H boasts a tensile strength of 515 MPa, a yield strength of 205 MPa, and an elongation of around 40%, with a density of 8.0 g/cm³ and a melting range of 1400–1450°C. These characteristics make it an excellent choice for environments that experience high temperatures and pressure.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304H | 1.4948 | S30409 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 304H sheets and plates offer many benefits, including excellent corrosion resistance, making them ideal for harsh environments. Due to their strength and durability, they are well suited for high temperature applications, especially in industries such as fuel and power generation. The material is highly resistant to oxidation and scaling, providing durability and reliability. Their ease of manufacture, form, and weldability allow them to be used in a variety of architectural and industrial applications. In addition, 304H offers excellent resistance to chloride-induced stress corrosion cracking, making it an excellent choice for harsh conditions
Stainless Steel 304H Sheets and Plates find extensive use in boiler components, heat exchangers, pressure vessels, and piping systems, thanks to their remarkable high-temperature strength and oxidation resistance. They are particularly well-suited for chemical processing plants, oil and gas refineries, and power plants, where exceptional heat resistance is crucial. Moreover, SS 304H sheets and plates are utilized in structural frameworks, construction, and architectural applications, combining durability with aesthetic appeal. Their ability to endure elevated temperatures without compromising strength makes them ideal for industrial furnaces, heat treatment equipment, and thermal process applications.
