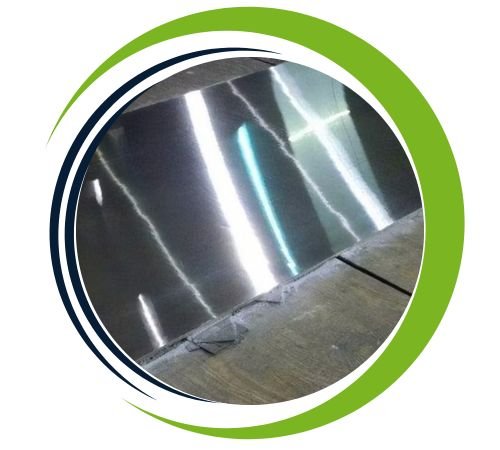

Victor Sheets and Plates, a top-notch manufacturer and supplier based in Abuja, Nigeria, is well-known for its high-quality Stainless Steel 422 Sheets and Plates. These products are celebrated for their impressive strength, resistance to oxidation, and toughness even at high temperatures. Built for both performance and durability, these sheets and plates are tailored to meet the rigorous demands of various industrial applications. With a strong focus on precision manufacturing and consistent quality, Victor Sheets and Plates guarantees that their Stainless Steel 422 offerings provide outstanding mechanical performance, a long service life, and excellent corrosion resistance, making them perfect for power generation, aerospace, and engineering projects that require strength and heat resilience.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Grade | C | P | Si | Ni | V | Fe | Mn | S | Cr | Mo | W | Cu |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS 422 | 0.20-0.25 | 0.040 max | 0.20-0.60 | 0.50-1.0 | 0.17-0.30 | Bal | 1.0 | 0.030 max | 11.0-13.5 | 0.75-1.25 | 0.75-1.25 | 0.50 |
| Material | Condition | 0.2 % Yield Strength (ksi) | Ultimate Tensile Strength (ksi) | % Elongation in 2″ | % Reduction of Area | Hardness HB |
|---|---|---|---|---|---|---|
| SS 422 | Hardened & Tempered (AMS 5655) | 140 | 115 | 13 | 25 | 293-341 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 422 | 1.4935 | S42200 |
| Density (lb / cu. in.) | 0.287 |
| Specific Gravity | 7.94 |
| Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | 0.12 |
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 432 |
| Melting Point (Deg F) | 2590 |
| Modulus of Elasticity Tension | 28 |
| METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
|---|---|---|
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 422 sheets and plates offer many advantages, including excellent increased strength and oxidation resistance, making them ideal for applications in harsh environments such as turbine heat exchangers They provide excellent corrosion resistance , ensure durability under extreme conditions Their high tensile strength and strength enhance the reliability of the structures, while mechanical practicality and ease of manufacture. These sheets and plates remain stable and durable under stress, providing longevity. In addition, the cost-effectiveness and compatibility of heat treatments provides assets tailored to specific industrial applications, resulting in versatile and reliable products.
Stainless Steel 422 Sheets and Plates find extensive use in applications that demand high strength, oxidation resistance, and durability at elevated temperatures. They are commonly utilized in gas turbines, steam turbines, and components for jet engines. Additionally, these materials are essential for furnace parts, valves, pumps, and bolts that operate under thermal stress. In the power generation and petrochemical sectors, these sheets and plates are highly valued for their ability to maintain stability and performance in challenging environments.
