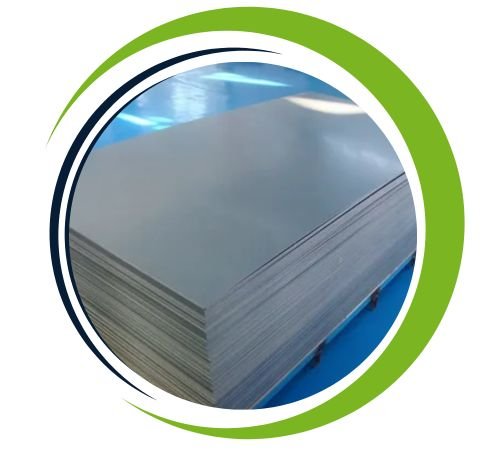

Victor Sheets and Plates stands out as a leading manufacturer and supplier of Stainless Steel 310 Sheets and Plates in Abuja, Nigeria. They offer top-notch stainless steel products that are built to endure extreme temperatures and harsh environments. Stainless Steel 310 is an austenitic chromium-nickel alloy celebrated for its remarkable oxidation resistance and impressive strength at high temperatures. At Victor Sheets and Plates, they prioritize precision manufacturing, exceptional surface finishes, and strict compliance with international standards. Their products cater to a diverse array of industries, including petrochemical, furnace equipment, power generation, and heat treatment, providing reliable and efficient materials for demanding high-temperature applications.
The Stainless Steel 310 Sheets and Plates are composed of 24–26% chromium and 19–22% nickel, which grant them outstanding resistance to oxidation, scaling, and corrosion even at elevated temperatures. This alloy also contains trace amounts of manganese, silicon, and carbon, which enhance its strength and structural integrity. It boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting point ranging from 1400–1450°C, SS 310 retains excellent mechanical properties, high creep strength, and good ductility, even when subjected to continuous thermal cycling.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 310 sheet and plate offer exceptional mechanical advantages. Their high chromium and nickel content ensures excellent resistance to oxidation, corrosion and scaling at temperatures up to 1150°C. These sheets and plates are durable, durable, and provide mechanical stability under thermal cycling. They exhibit excellent weldability and formability, making them easy to manufacture in complex structures. Additionally, they operate reliably in turbulent environments, including chemical processing plants, heat exchangers and furnaces. Their low maintenance and long life make them cost-effective and reliable for complex applications.
Stainless Steel 310 Sheets and Plates are extensively utilized in high-temperature service environments, such as furnace linings, heat exchangers, kilns, incinerators, and boiler components. Their ability to resist oxidation and scaling up to 1100°C makes them perfect for industries involved in thermal processing and power generation. Additionally, they are employed in chemical processing, oil and gas, and refineries for managing hot gases and corrosive substances. SS 310 also finds its way into automotive exhaust systems, food processing equipment, and architectural structures that require both strength and temperature stability, showcasing its versatility.
