Stainless Steel 317 Sheet and Plates

Victor Sheets and Plates is a reputable manufacturer and supplier of Stainless Steel 317 Sheets and Plates based in Abuja, Nigeria. They pride themselves on delivering top-notch stainless steel products that excel in both corrosive and high-temperature settings. Stainless Steel 317 is an austenitic alloy made up of chromium, nickel, and molybdenum, which gives it remarkable resistance to chemical attacks, especially from acids and chlorides. At Victor Sheets and Plates, they focus on precision engineering, ensuring an excellent surface finish and dimensional accuracy that meet international quality standards. Their products cater to a variety of industries, including chemical processing, petrochemical, marine, and power generation, providing dependable and durable solutions tailored to the unique needs of their clients.

317 Stainless Steel Sheet

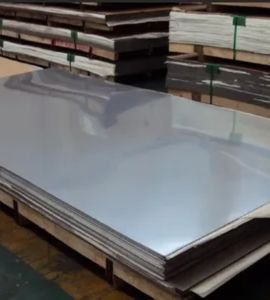

SS 317 CR Plates

Stainless Steel 317 HR Sheets

ASTM A240 Stainless Steel 317 Sheets Dealer in Lagos, SS 317 Plates Supplier in Lagos, Stainless Steel S31700 Sheets and Plates in Port Harcourt, Stainless Steel 1.4449 Sheets and Plates Size Chart, 317 SS Sheets and Plates Price in Kano, ASME SA240 SS 317 Plates Supplier in Nigeria, 317 Stainless Steel Sheets in Ibadan, Stainless Steel 317 Sheet and Plate Supplier in Nigeria

The Stainless Steel 317 Sheets and Plates are composed of about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, which significantly boost their resistance to corrosion and pitting. This alloy also contains manganese, silicon, and a low carbon content, enhancing its weldability and toughness. With a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 35%, it boasts a density of 8.0 g/cm³ and a melting point between 1370–1400°C. SS 317 is known for its excellent mechanical stability, formability, and resistance to crevice corrosion and intergranular attacks, even in the most challenging chemical environments

Stainless Steel 317 Sheet and Plates Specification

317 Sheets & Plates Specifications	ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
317 Sheets & Plates Dimension Standard	MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
SS 317 Sheets & Plates Size Range	Cold rolled ASME SA240 Grade 317 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317 Stainless Steel Sheet 3.0–10.0 mm
317 SS Sheets & Plates Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
SS 317 Sheets & Plates Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
SS 317 Sheets & Plates Thickness	0.3 mm to 120 mm
International Standard of Stainless Steel 317 Sheets & Plates	ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510
Tolerances (width / thickness) of Stainless Steel 317 Sheets & Plates	EN 10258/ DIN 59381) EN 10151 ASME SA240 317 SS Strips EN 10088 SA -240-304 / 317 Strips
Finish of SS 317 Sheets & Plates	2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Form	Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate
Value Added Service	Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

SS 317 Sheets and Plates Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 317	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 – 20.00	3.00 – 4.00	11.00 – 15.00	57.845 min

SS 317 Sheets and Plates Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Equivalent Grades of A240 Stainless Steel 317 Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
SS 317	1.4449	S31700	SUS 317	–

317 Stainless Steel Hot Rolled Sheets Price in Kano, Stainless Steel 317 Shim Sheets Weight Chart, SS 317 Perforated Sheets Supplier in Nigeria, Stockist of SUS 317 Sheets and Plates in Ibadan, 317 SS Cold Rolled Sheets Supplier in Nigeria, 317 SS Cold Drawn Plates Price List in Abuja, SS 317 Chequered Plates Supplier in Ibadan, Stainless Steel 317 Chequered Plates Exporter in Lagos, DIN 1.4449 Stainless Steel Plates Exporter in Nigeria, Stainless Steel Sheet 317 2b Finish Exporter in Port Harcourt

Finishes Of Stainless Steel 317 Sheets and Plates

Surface Finish	Definition	Application
2B	Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.	Medical equipment, Food industry, Construction material, Kitchen utensils.
BA	Those processed with bright heat treatment after cold rolling.	Kitchen utensils, Electric equipment, Building construction.
NO.3	Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.	Kitchen utensils, Building construction.
NO.4	Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.	Kitchen utensils, Building construction, Medical equipment.
HL	Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.	Building Construction.
NO.1	The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.	Chemical tank, pipe

SS 317 Sheets and Plate Standard Size Chart

2000MM X 1000MM X 3MM	2000MM X 1000MM X 6MM
2500MM X 1250MM X 4MM	2500MM X 1250MM X 8MM
3000MM X 1500MM X 3MM	3000MM X 1500MM X 6MM
3000MM X 1500MM X 4MM	3000MM X 1500MM X 8MM
2000MM X 1000MM X 5MM	2500MM X 1250MM X 10MM
2500MM X 1250MM X 3MM	2500MM X 1250MM X 6MM
4000MM X 2000MM X 3MM	4000MM X 2000MM X 6MM
2500MM X 1250MM X 5MM	3000MM X 1500MM X 10MM
2000MM X 1000MM X 4MM	2000MM X 1000MM X 8MM
4000MM X 2000MM X 4MM	2000MM X 2000MM X 10MM
3000MM X 1500MM X 5MM

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Stainless Steel 317 Sheet and Plates Manufacturer and Exporter in Abuja, Nigeria

Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

UNS S31700 Stainless Steel Sheets Distributor in Nigeria, SS 317 Plates Supplier in Abuja, Stainless Steel 317 Sheets Weight Chart, 317 Stainless Steel Hot Rolled Sheets Exporter in Ibadan, Stainless Steel 317 Shim Sheets Manufacturer in Lagos, SS 317 Chequered Plates Price List in Nigeria, 317 Stainless Steel Sheets Sizes in mm, Stainless Steel Sheet 317 2b Finish Distributor in Port Harcourt, Stainless Steel 317 Sheets and Plates Exporter in Kano

Stainless steel 317 sheets and plates provide exceptional corrosion resistance, especially in acidic environments, making them ideal for chemical, petrochemical and pharmaceutical applications Due to their high chromium and molybdenum content, they provide excellent durability and strength at higher temperatures. These materials are highly resistant to pitting, crevice corrosion, and stress corrosion cracking. Additionally, stainless steel 317 is easy to weld, fabricate and maintain, providing long service life. Its aesthetic appeal and oxidation resistance further enhance its suitability for building and construction applications, and provide functional and visual advantages

Types of Stainless Steel 317 Sheet and Plates

BA Finish Stainless Steel 317 Plates in Lagos, UNS S31700 SS Sheets Port Harcourt, , SUS 317 Sheets and Plates Supplier in Abuja, 317 SS Perforated Sheets Exporter in Ibadan, DIN 1.4449 SS Perforated Sheets Price List in Nigeria, SS 317 Sheets Distributor in Port Harcourt, ASME SA 240 Stainless Steel 317 Sheets Supplier in Lagos, 317 SS Sheet and Plate Distributor in Nigeria, Stainless Steel 317 Shim Sheets Sizes in mm

Are Custom Sizes Available for Stainless Steel 317 Sheet and Plates?

Yes, we offer custom sizes for Stainless Steel 317 Sheet and Plates to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Stainless Steel 317 Sheet and Plates

Stainless Steel 317 Sheets and Plates find extensive use in the chemical processing, pulp and paper, textile, and marine industries, thanks to their exceptional resistance to acidic and chloride-rich conditions. They are perfect for applications like evaporators, heat exchangers, condensers, and pressure vessels, where aggressive chemicals are often encountered. The alloy’s ability to endure high temperatures and corrosive solutions also makes it a great choice for food processing equipment, refinery components, and pollution control systems. In construction and architectural projects, these sheets and plates are highly valued for their durability and performance.
